Lagertyp: Zwei Kugellager
Material: Impeller &Rahmen: Kunststoff (UL94V-0)
Bleidraht: UL1007 im Kombi,AWG26
nbsp; Red Wire Positiv (+)
nbsp; Negativ (Black Wire)一)
Gewicht: 8.0g
| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |

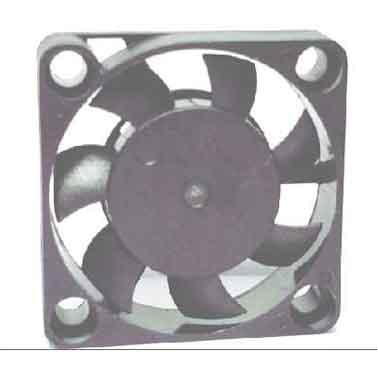

| WSA03007_05L | B/S/F | 5 | 4.5~5.5 | 0.06 | 6000 | 1.88 | 1.32 | 17 |
| WSA03007_12L | B/S/F | 12 | 7~13.2 | 0.03 | 6000 | 1.88 | 1.32 | 17 |
| WSA03007_05M | B/S/F | 5 | 4.5~5.5 | 0.08 | 7500 | 2.75 | 2.56 | 24 |
| WSA03007_12M | B/S/F | 12 | 7.0~13.2 | 0.05 | 7500 | 2.75 | 2.56 | 24 |
| WSA03007_05H | B/S/F | 5 | 4.5~5.5 | 0.1 | 9000 | 3.32 | 4.21 | 29 |
| WSA03007_12H | B/S/F | 12 | 7.0~13.2 | 0.07 | 9000 | 3.32 | 4.21 | 29 |
| WSA03007_05U | B/S/F | 5 | 4.5~5.5 | 0.14 | 11000 | 4.45 | 5.32 | 31 |
| WSA03007_12U | B/S/F | 12 | 7.0~13.2 | 0.09 | 11000 | 4.45 | 5.32 | 31 |
