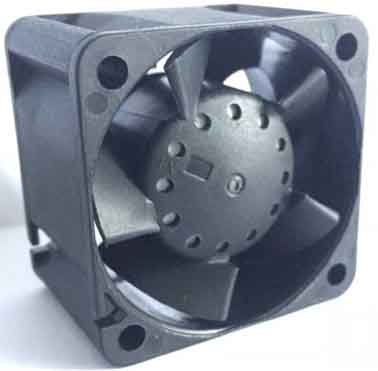

Lagertyp: Zwei Kugellager
Material: Impeller &Rahmen: Kunststoff (UL94V-0)
Bleidraht: UL1007 im Kombi,AWG26
nbsp; Red Wire Positiv (+)
nbsp; Negativ (Black Wire)一)
Gewicht: 40.0g

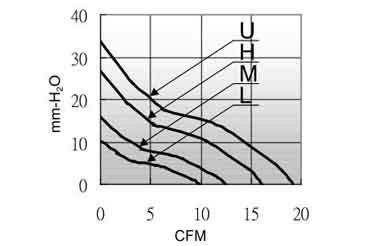

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA03828_12L | B | 12 | 7.0~13.2 | 0.2 | 8000 | 9.44 | 10.02 | 38 |
| WSA03828_12M | B | 12 | 7.0~13.2 | 0.3 | 10000 | 12.46 | 12.46 | 44 |
| WSA03828_12H | B | 12 | 7.0~13.2 | 0.5 | 13000 | 16.3 | 25.91 | 51 |
| WSA03828_12U | B | 12 | 7.0~13.2 | 0.82 | 15000 | 19.16 | 34.71 | 55 |
