Lagertyp: Zwei Kugellager
Material: Impeller &Rahmen: Kunststoff (UL94V-0)
Bleidraht: UL1007 im Kombi,AWG26
nbsp; Red Wire Positiv (+)
nbsp; Negativ (Black Wire)一)
Gewicht: 7.0g

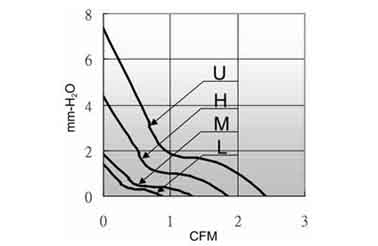

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA02510_05L | B/S | 5 | 4.5~5.5 | 0.12 | 5000 | 0.88 | 1.4 | 18 |
| WSA02510_12L | B/S | 12 | 7.0~13.2 | 0.06 | 5000 | 0.88 | 1.4 | 18 |
| WSA02510_05M | B/S | 5 | 4.5~5.5 | 0.13 | 7000 | 1.32 | 1.9 | 20 |
| WSA02510_12M | B/S | 12 | 6.0~13.8 | 0.07 | 7000 | 1.32 | 1.9 | 20 |
| WSA02510_05H | B/S | 5 | 4.5~5.5 | 0.16 | 10000 | 1.85 | 4.4 | 23.5 |
| WSA02510_12H | B/S | 12 | 6.0~13.8 | 0.08 | 10000 | 1.85 | 4.4 | 23.5 |
| WSA02510_05U | B/S | 5 | 4.5~5.5 | 0.22 | 13000 | 2.41 | 7.3 | 28 |
| WSA02510_12U | B/S | 12 | 6.0~13.8 | 0.12 | 13000 | 2.41 | 7.3 | 28 |
